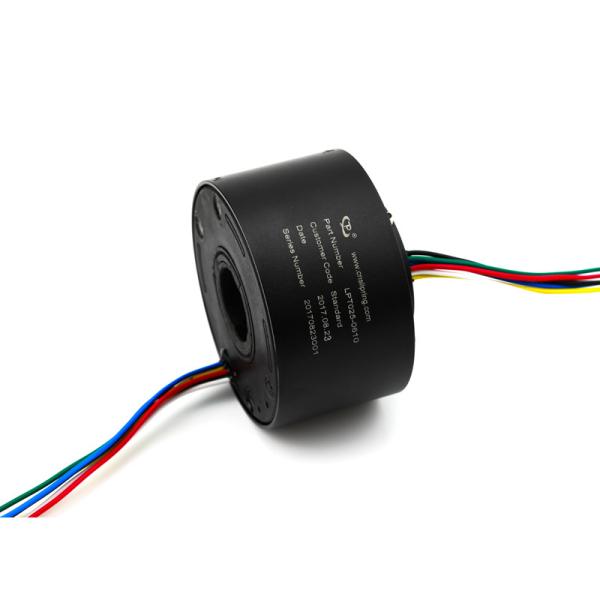

6 Circuits 240VAC 10A 300rpm Through Hole Slip Ring

Brand Name : JINPAT

Model Number : LPT025-0610

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, C/C, Paypal

Supply Ability : 500 pieces/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Circuits : 6 circuits ; 6*10A

Rating Voltage : 240VAC/DC

Dielectric Strength : 1000VAC@50Hz

Contact Now

The high-performance slip ring of automatic packaging machinery developed by JINPAT adopts multi-strand combination of imported fiber brush wires to ensure reliable contact under low brush pressure, long service life, 24 hours of continuous rotation, maintenance-free, no lubrication, 360 degree connection rotation transmission power and data signals (including analog, digital, serial port, thermocouple signals, etc.).



JINPAT packaging machinery slip ring has a unique design scheme for the thermocouple signal transmission of placement machine and packaging machine, and has been verified by many customers at home and abroad to ensure accurate temperature measurement, high temperature resistance and high reliability.



The contact material is imported from abroad, and the surface treatment is based on military-grade coating technology, which can be customized according to customer needs.

Specifications



Electrical & Electronics Mechanical
Circuits Total : 6 circuits ; 6*10A Rotating Speed 0~300rpm
Rating Voltage 240VAC/DC Contact Material Gold To Gold
Dielectric Strength 1000VAC@50Hz Housing Material Aluminum Alloy
Insulation Resistance
≥500MΩ@500VDC (P)
Wire Length
Stator: 300mm
Rotor: 300mm
Environmental Others
Temperature -20°C~+60°C Life span Customizable
Humidity ≤60%RH Note: "P" stands for power, "S" stands for signal
Protection grade IP40



Outline Drawing



6 Circuits 240VAC 10A 300rpm Through Hole Slip Ring
