300 Rpm High Speed Slip Rings IP40 25A Contact Material Gold To Gold

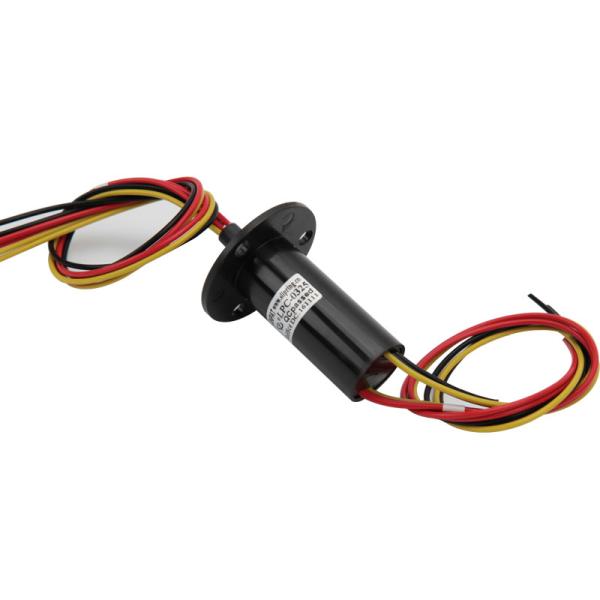

JINPAT LPC-0325-03S is a special capsule slip ring model with built-in thermostat. This is a slip ring model with three 25A channels, which is relatively high compared with other slip ring of the capsule slip ring series. A larger power capacity usually means it might generate more heat during operation. To ensure a stable and smooth rotation and power transmission, LPC-0325-03S is integrated with a build-in thermostat, so there are 3 LM35 circuits. With the thermostat, this capsule slip ring is able to endure low and high temperature that ranges from -20 to 80 degree centigrade. With built-in thermostat, the slip ring can adjust itself to the fittest temperature and therefore guarantee the stable electrical performances. LPC-0325-03S slip ring is a perfect model for small application with rotary power transmission demands. With IP40 protection grading, this slip ring is a competitive model in demanding environment.
Product outline drawing
Product parameter table
| Electrical & Electronics | Mechanical |
Number of
Circuits | 7CKT | Rotating
Speed | 0-300rpm |
3Circuits*25A /
3Circuits*LM35 |
| Rating Voitage | 240V AC/DC | Contact
Material | Gold-to-gold |
Insulation
Resistance | ≥500MΩ@50Hz(P)
≥100VAC@50Hz(S) | Housing
Material | Engineering Plastics |
| Dielectric Strength | ≥100VAC@200VDC(P)
≥10MΩ@100VDC(S) | Lead Wire Length | Stator:250±5mm
Rotor:250±5mm |
| Environment | Remarks |
| Working TEmperature | -20℃~+60℃ | Application | / |
| Working Humidity | ≤60％RH | Other | / |
| IP | 40 | Note:"P"stands for power,"S"stands for signal. | |
The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.
