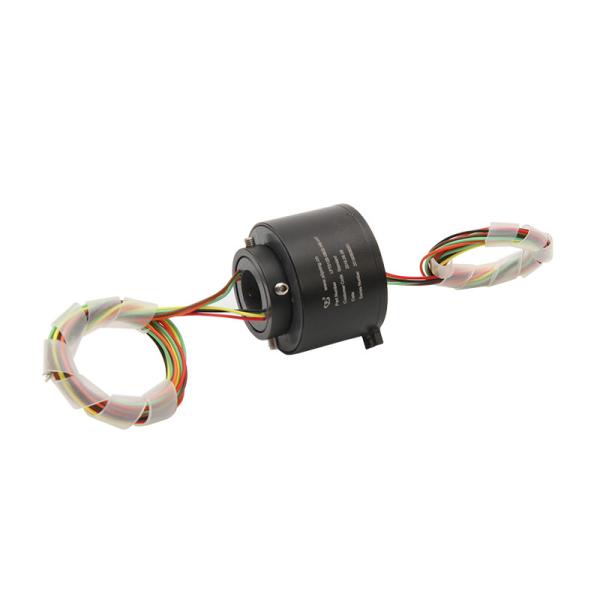

Industrial 240VAC Through Hole Slip Ring IP50 Engineering Plastic 6CKT

  • 1
  • 2
  • 3

Brand Name : JINPAT

Model Number : LPT012B-0602-HS-HT

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, C/C, Paypal

Supply Ability : 500 pieces / week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Housing Material : Engineering plastic

Contact Material : Gold-Gold

Inner Diameter : Φ12.7mm

Working Speed : 0~2000rpm

IP : IP50

Working Humidity : ≤60%RH

Serial communication : RS232, RS485, RS422, etc.

Universal Serial Bus : USB2.0

Contact Now

Industrial 240VAC Through Hole Slip Ring IP50 Engineering Plastic 6CKT



electrical slip rings industrial,can integrate high frequency, fiber other signal

LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can

also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber

brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current

is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.



Electronic & Electruc

Mechanical

Circuits

Total

6CKT

Working Speed

0~2000rpm

Detail

6X2A

Inner Diameter

Φ12.7mm

Rating Voltage

240VAC

Contact Material

Gold-Gold

Dielectric Strength

500VAC@50Hz

Housing Material

Engineering plastic

Insulation Resistance

≥300MΩ@300VDC

Lead Wire Length

Stator:300mm

Rotor:300mm

Environment

Remarks

Working Temperature

-20°C~+125°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

IP50

Note:"P" stands dor power, "S" stands for signal





LPT012B-0602-HS-HT-Outline Drawing



Industrial 240VAC Through Hole Slip Ring IP50 Engineering Plastic 6CKT



Industrial 240VAC Through Hole Slip Ring IP50 Engineering Plastic 6CKT
