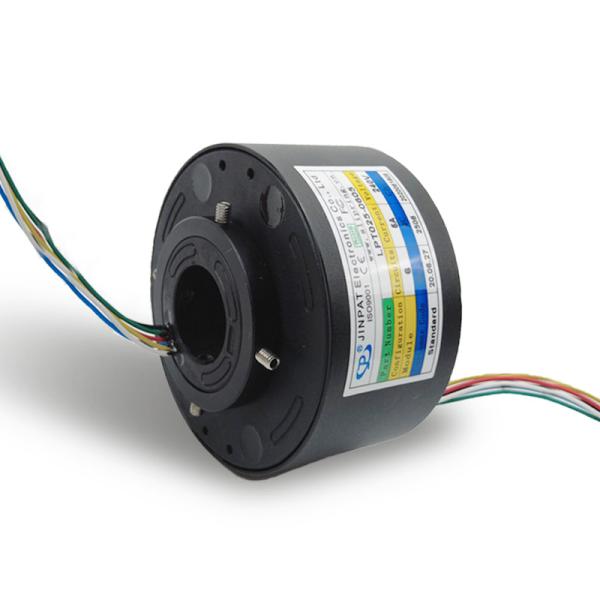

Inner Diameter 25.4mm Through Bore Slip Ring Aluminum Alloy Housing
LPT025-0605 through hole slip ring features 6 circuits routing 5A per wire.This compact slip ring has 25.4mm bore size for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications.this design features long life, fiber brush contact technology for ultimate performance in many challenging applications.
It provides an economical, readily available solution when a compact through-bore configuration is required. LPT025 series through bore slip ring ,the 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths. Similar in design to our very popular LPT025 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance-free, life time operation.
| Electronic & Electruc | Mechanical |
| Circuits | Total | 6CKT | Working Speed | 0~300rp |
| Detail | 6X5A | Inner Diameter | Φ25.4mm |
| Rating Voltage | 240VAC/ DC | Contact Material | Precious Metal |
| Dielectric Strength | 1000VAC@50Hz | Housing Material | Aluminum Alloy |
| Insulation Resistance | ≥500MΩ@500VDC | Lead Wire Length | Stator:300mm Rotor:300mm |
| Environment | Remarks |
| Working Temperature | -20°C~+60° | Other | / |
| Working Humidity | ≤60%RH |

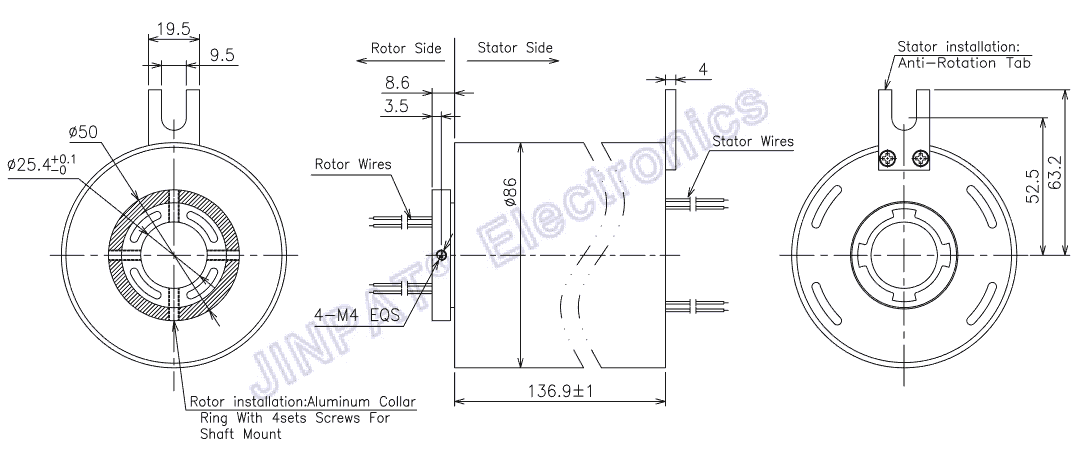

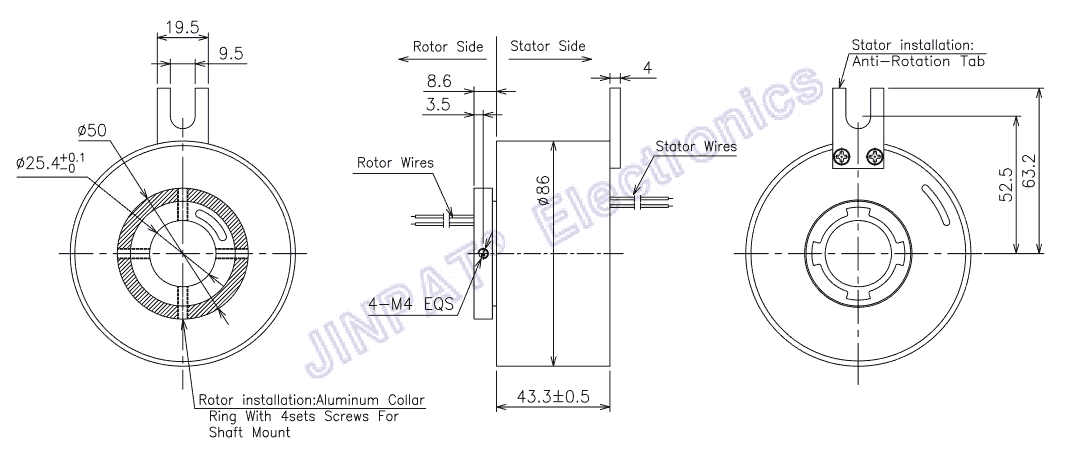

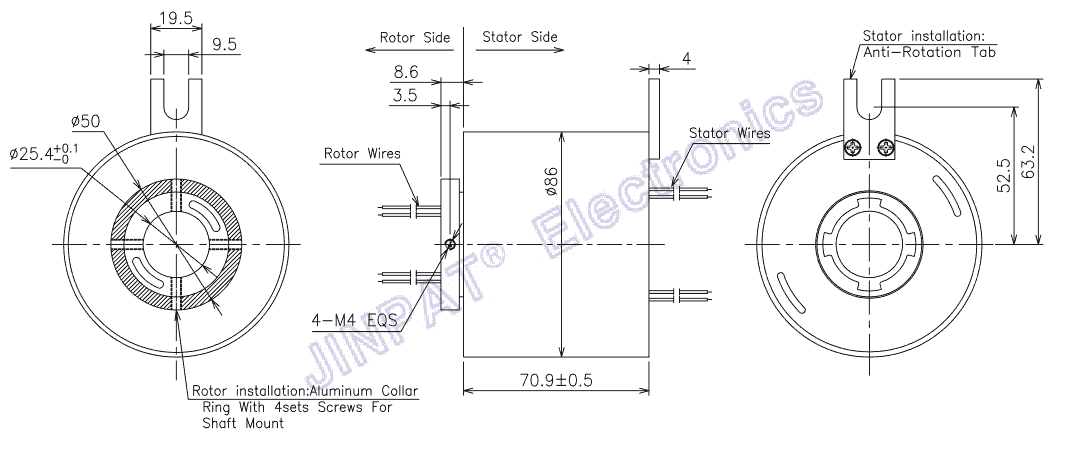

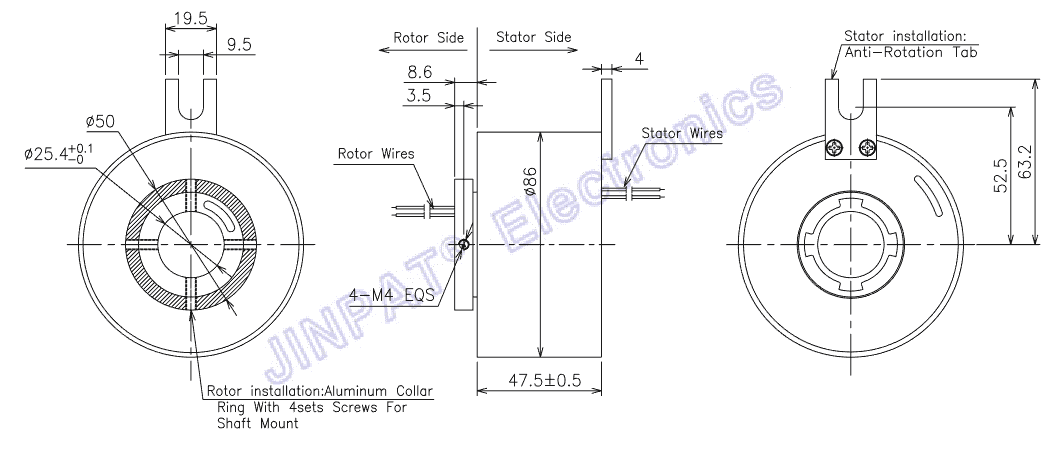

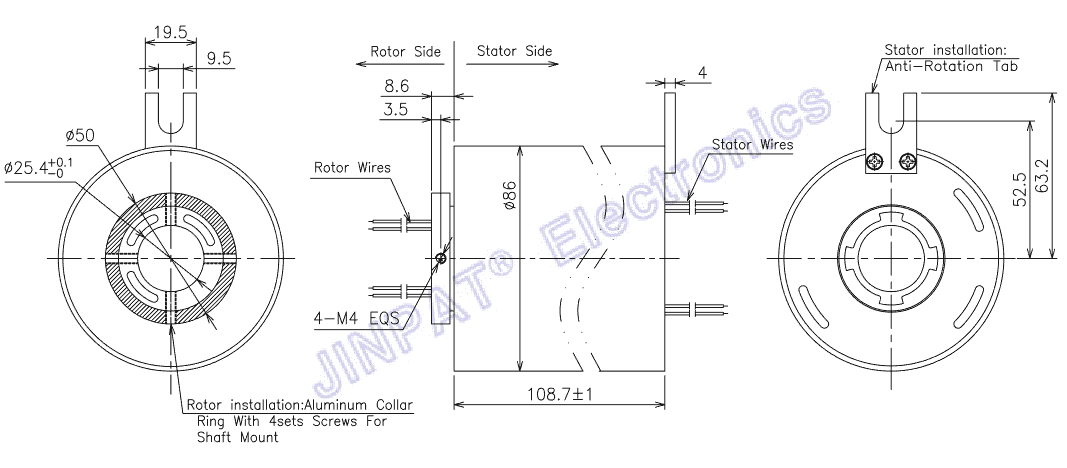

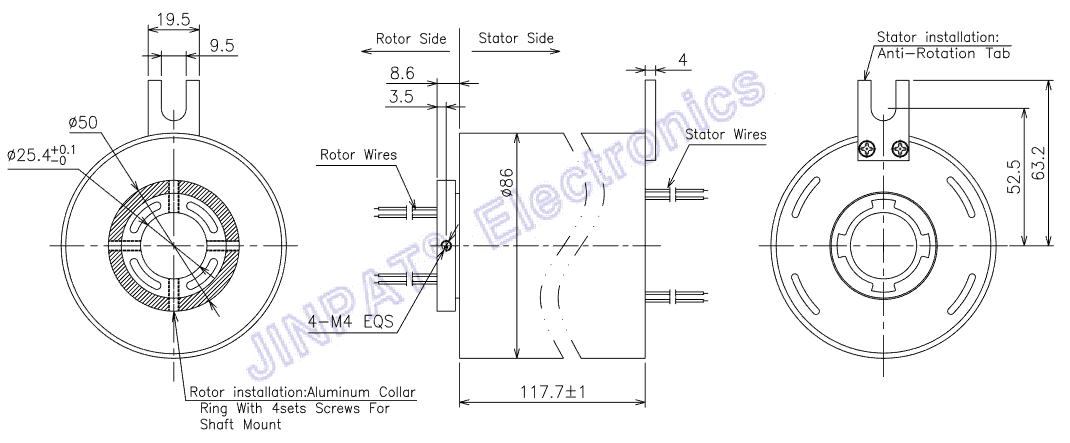

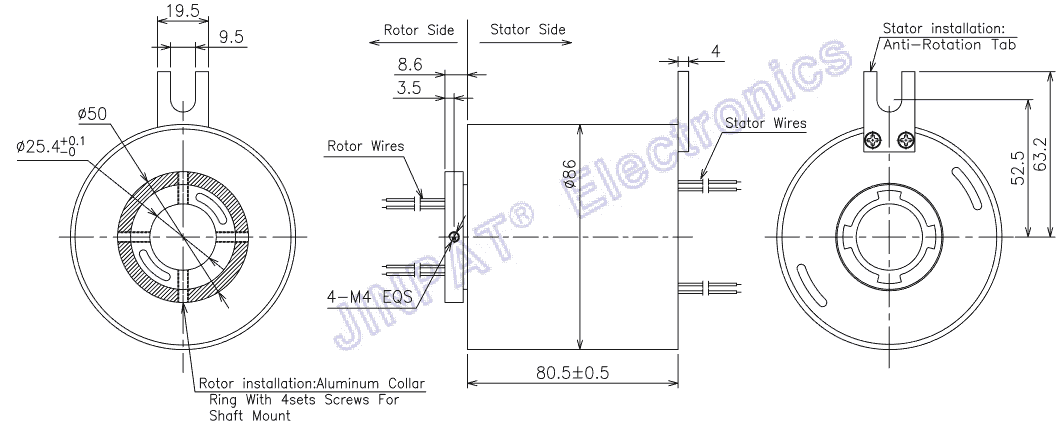

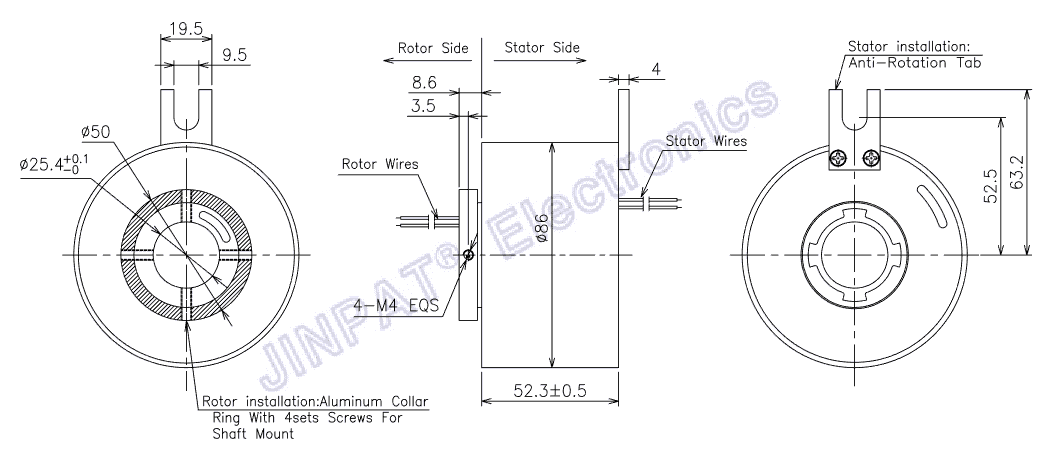

LPT025-0605-Outline Drawing

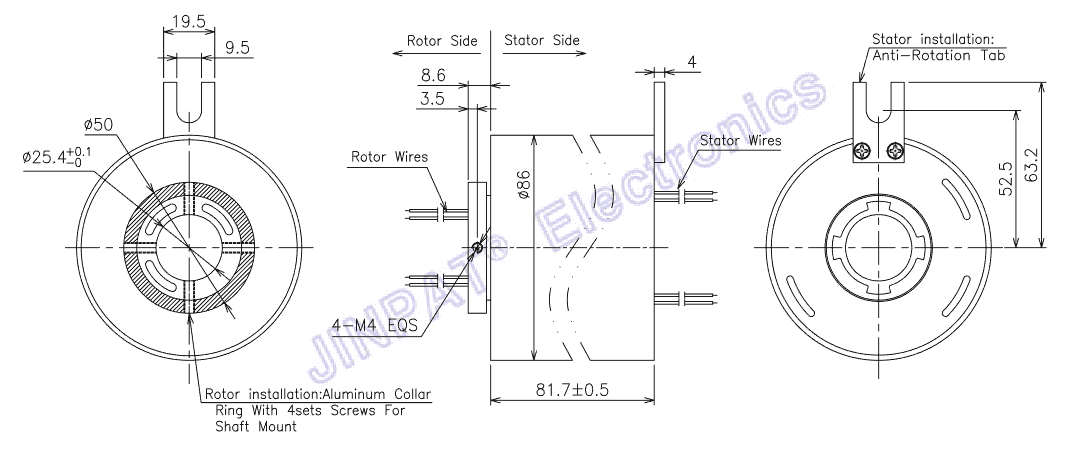

LPT025-0610-Outline Drawing
LPT025-0615-Outline Drawing
LPT025-1205-Outline Drawing
LPT025-1210-Outline Drawing
LPT025-1215-Outline Drawing
LPT025-1805-Outline Drawing
LPT025-1810-Outline Drawing
LPT025-1815-Outline Drawing
LPT025-2405-Outline Drawing
LPT025-2410-Outline Drawing
LPT025-2415-Outline Drawing
