4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance

Name: 4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance
Brand: JINPAT
Price: 1 USD

Buy cheap 4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance product

Brand Name : JINPAT

Model Number : LPM-04A

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 50K units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Operating Speed : 0-300 rpm

Number of Circuits : 4

Voltage : 240 VAC/DC

Current Rating : 2 amps per circuit

Contact Material : Gold to Gold

Application : CCTV pan

Contact Now

4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance

Quick detail

The LPM-04A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

The LPM-04A allows tremendous flexibility in dealing with system size restrictions. It is available in 1-4 circuit configurations.

Specification

Specifications
Operating Speed	0-300 rpm
Circuits	4
Voltage	240 VAC/DC
Rated Current	2 amps per circuit
Temperature Range	-20℃ to +60℃
Contact	Gold to Gold
Lead Size	30# silver plated copper
Lead Length	Standard 250 mm (9.843inch)
Dielectric Strength	≥500 VAC @50Hz, between each circuit
Insulation Resistance	1000 MΩ @ 500 VDC
Electrical Noise	1mΩ Min

Capsule Length =L
# of Circuits
4

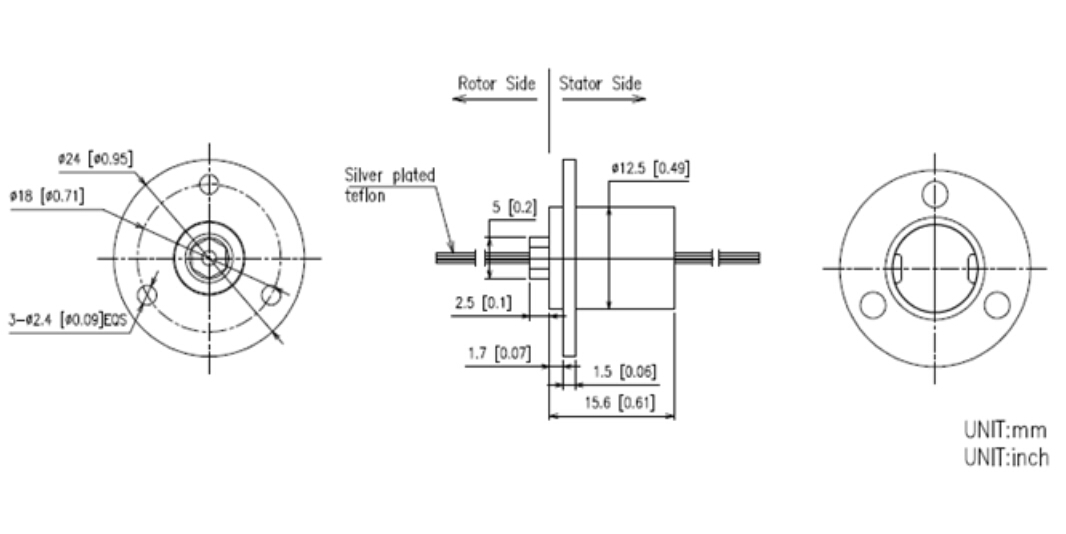

Outline dimension

4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance

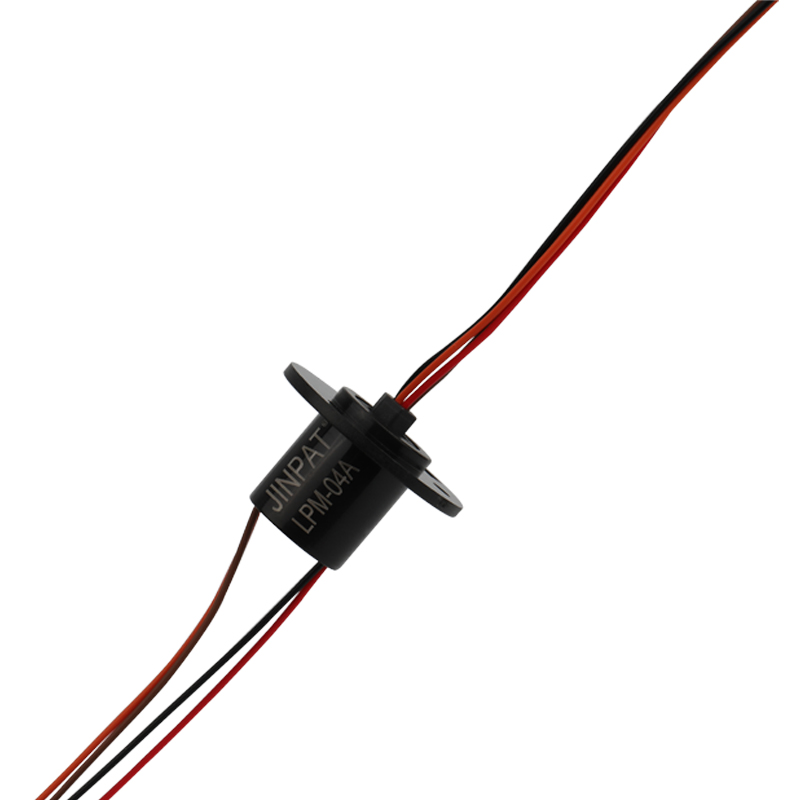

Product display

Product application(LED Advertisement Board)

4 Circuits 2A Per Wire Miniature Capsule Slip Ring with Low Contact Resistance
