Precious Metal Contact Slip Ring Electric Motor 7 Circuits Transmitting 5A Per Wire

Product Categories
JINPAT Electronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Precious Metal Contact Slip Ring Electric Motor 7 Circuits Transmitting 5A Per Wire

  • 1
  • 2
  • 3

Brand Name : JINPAT

Model Number : LPS-0705

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 pieces/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Working Speed : 0~250 rpm

Number of circuits : 7

Voltage : 240VAC/DC

Current Rating : 5A

Name : Electric slip ring

Contact : Precious Metal

Wire Length : 305±5mm

Protection Grade : IP54

Contact Now

7 Circuits Separate Slip Ring Transmitting 5A Per Wire with Precious Metal Contact for Medical Field



Separate slip ring consists of the rotor and the contact brush. The rotor part can be provided with a through hole for hydraulic pressure, air channel, or drive shaft assembly to cooperate with the limited space and installation requirements of the customers. Also can be used instead of wire pin contact transmission current.



Specification

  Circuits     7 circuits *5A
  Voltage    240VAC
  Dielectric    Strength 500VAC between circuits
Insulation 100MΩ@500VDC
Contact  Precious Metal
Working Speed 0~250 rpm
Wire Size  AWG20# Wire
Wire Length  305±5mm
 Working Temperature -20~+200℃

Protection

Grade

 IP54

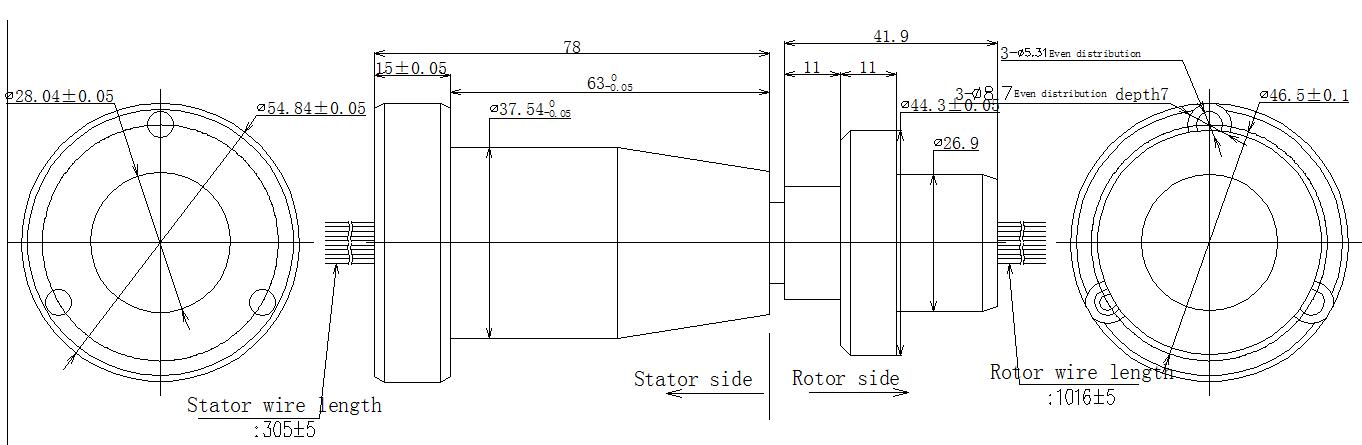

Dimension


Precious Metal Contact Slip Ring Electric Motor 7 Circuits Transmitting 5A Per Wire

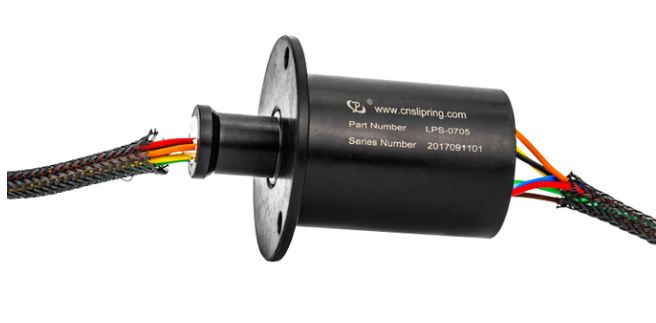

Product Picture



Precious Metal Contact Slip Ring Electric Motor 7 Circuits Transmitting 5A Per Wire



Application Picture



Precious Metal Contact Slip Ring Electric Motor 7 Circuits Transmitting 5A Per Wire




Product Tags:

industrial slip ring



wind turbine slip ring



250rpm Electric slip ring
