3 Circuits Small Dimension IP54 Transferring Power One-stop slip ring solution

3 Circuits Small Dimension IP54 Rotary Slip Ring Transferring Power

Flat Slip Ring Description

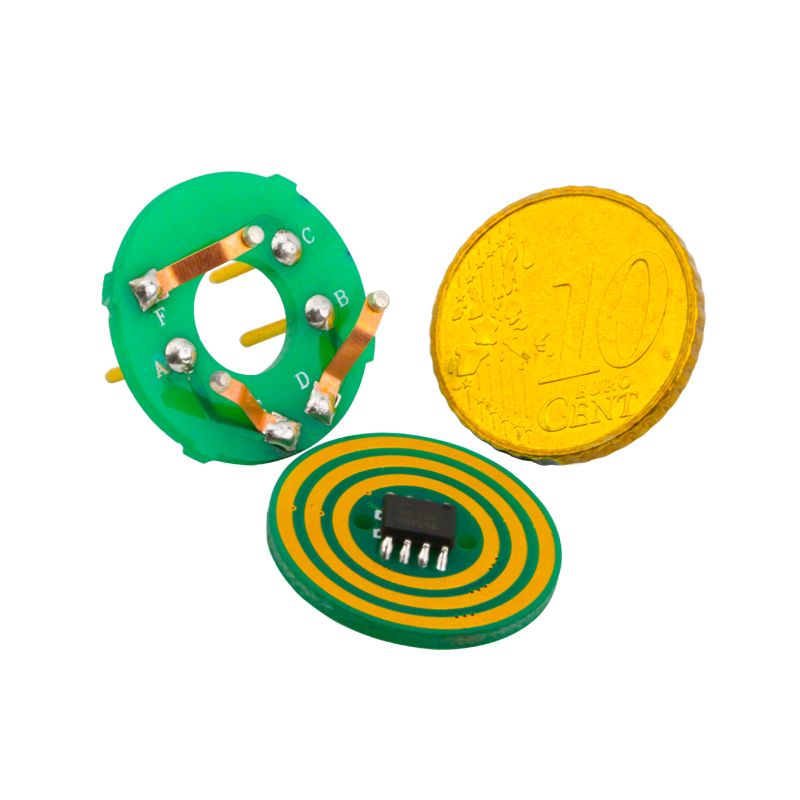

 The LPKS000-0202-01S-PIN separate pancake slip ring is designed with φ21mm(OD0*6mm(H). Reliable contact and ultra-low electrical noise of the light slip ring, together with a high rotating speed are the notable characteristics. They are proven to be of qualified products, secured by the full-fledged quality control center. Moreover, Such Pancake units for encoder are equipped with ready-made photoelectric encoders. Moreover, they can stand the wet calorific test. 360° rotating transmission without surge kind of interference or data package loss wins the customers’ recognition.

Flat Slip Ring Features & Advantages

•  Outline Dimension: φ21 mm (OD)*6mm (H)
•  A creative unit that adopts surface mounted technology (SMT)
• 360° continuous rotating transmission of analog/data signal, compatible with data bus protocol
•  Specially designed mounting hole/groove for flange
•  Superior integrated chip and terminal
•  Exquisite and rigorous structural design, easy to install in tiny space
•  Extension can be done to support various signals transmission including Ethernet, RS and serial signals

Flat Slip Ring Application

• Packaging Machine
• Automation Equipment
• Robotics

Outline Drawing




Specification



Product Display



Company Show




IP54 pan cake slip ring

3 Circuits Rotary Slip Ring

IP54 Rotary Slip Ring
