5 Circuits Through Bore Electrical Slip Ring IP64 and 200 Million Turns Long Life

Name: 5 Circuits Through Bore Electrical Slip Ring IP64 and 200 Million Turns Long Life
Brand: JINPAT
Price: 1 USD

Buy cheap 5 Circuits Through Bore Electrical Slip Ring IP64 and 200 Million Turns Long Life product

Brand Name : JINPAT

Model Number : LPT020-0316-02S

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, C/C, Paypal

Supply Ability : 500 pcs/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Current : 5/16A

Voltage : 48 /240 VDC/AC

Working Speed : 0~500 rpm

Inner Diameter : φ25mm

Working Temperature : -20~+80℃

IP : IP64

Contact Now

5 Circuits Through Hole Slip Ring with IP64 and 200 Million Turns Long Service Life Transferring Power and Signal

Description

The LPT020-0316-02S through bore slip ring is designed with special contact structure. Distinguishing itself from common slip ring adopting brush wire, the new slip ring employs plate sheet and brush block in its contact.Plate sheet have gone through a special technique. The part includes 3 circuits for power transmission and 2 circuits for signal transferring. The plate sheet, brush block and copper ring together build a superb contact for the rotating transmission, which accordingly promotes its service life.

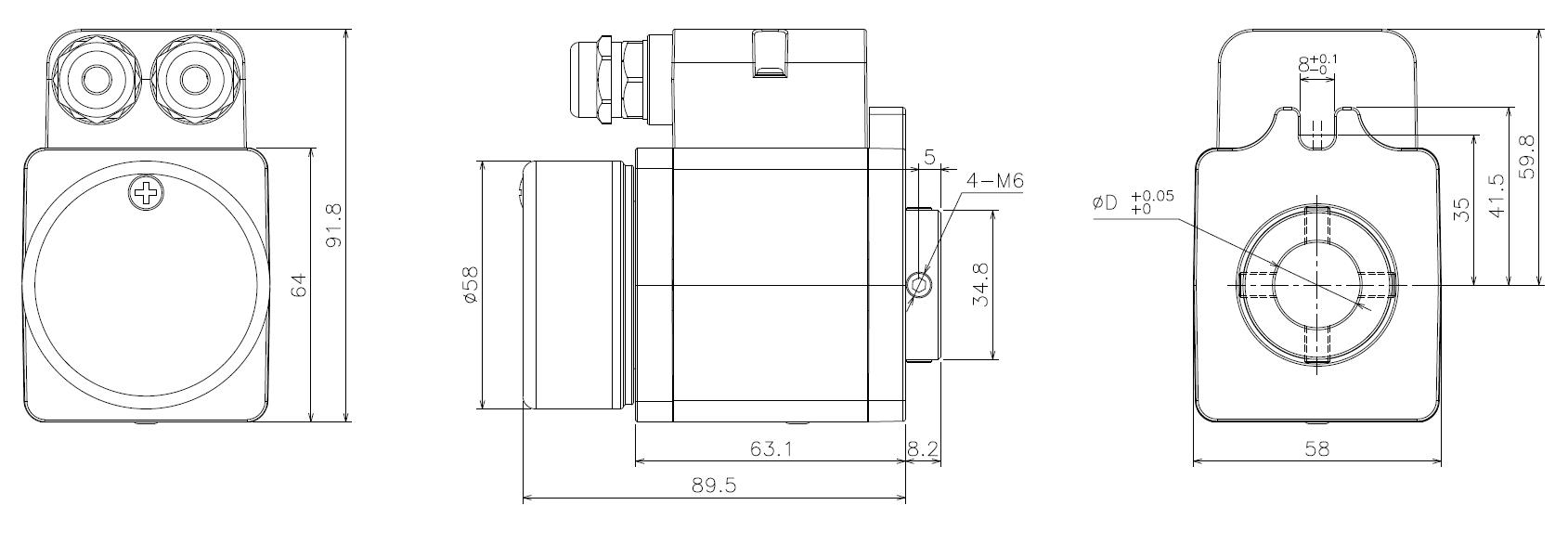

Outline Drawing

5 Circuits Through Bore Electrical Slip Ring IP64 and 200 Million Turns Long Life

Specification

Specifications
Operating Speed	0-500 rpm
Circuits	5
Voltage	48/ 240 VAC/DC
Rated Current	5/16 A per circuit
Temperature Range	-20℃ to +80℃
Humidity	90%RH
IP	IP64
Lead Length	Stator:300mm Rotor:300mm
Dielectric Strength	≥1000V@50Hz (P) 500V@50Hz (S)
Insulation Resistance	1000MΩ@500VDC(P) 500MΩ@300VDC(S)
Inner Diameter	∅25
Contact	Copper/Silver Graphite
Housing	Engineering Plastic
Torque	＜0.15N.m
Wire Connection	Terminal/ Stud
Life	200 million turns
